To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Lun 18 Jan 2021 - 12:51

Merci dakota!

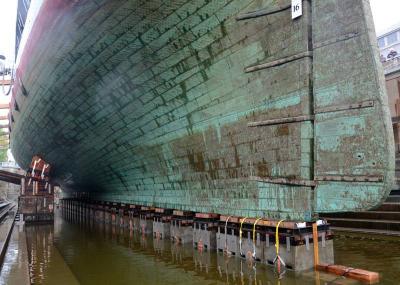

Sur la Constitution j´ai découvert deux trous dans le safran. Une fois  soupçonneux je l´ai découvert dans des épaves, des navires existant et aussi dans la littérature dans tous les nationalités. Petit détail omit systématiquement, comme le paratonnerre ;-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 F165t110

C´est tout simplement pour faciliter de mettre le safran. On peut voir les même trous sur le safran perdu du HMS St. Georges, retrouvé et exposé à Thorsminde, au Danmark.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-rudder_lift2_3848

Et avec le gréement.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-Ruderlichter_3852

Et la petite pièce de bois qui secoure le grand safran.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-141018_6739

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-stern_6753

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-stern_6759

Les marques du tirant d'eau

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-etch_6673

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-etch_6676

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-etch_6677

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-etch_6682

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-etch_6687

Et un peu de couleur gris.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-stem_6792

Et pour finir le coin arrière.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-stern_6778

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-stern_6773

Et d´autres babioles

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-rudder-pendents_9371

Premiere essai raté ...

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-rudder-pendents_9373

Prochaine essai

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-rudder-pendents_9376

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-rudder-pendents_9378

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-sorgleine_9391

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-sorgleine_9379

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-sorgleine_9395

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-sorgleine_9399

Maintenant je sais que la ligne de sécurité va jusque en haut de la dunette et est attaché sur un bit. Vu sur le modele du Vic de 1765.

XXXDAn


Dernière édition par dafi le Lun 18 Jan 2021 - 13:15, édité 2 fois
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Lun 18 Jan 2021 - 13:09

sacrée boulot de détaille âge  tu cartonnes tu cartonnes tu cartonnes
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Mer 20 Jan 2021 - 12:34

Les premiers essaies modestes de détailler la batterie basse. Tous les pieces sont encore en balsa ou polystyrène.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640-victory-dopplung

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-spill_5315

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_victory-spill1_5373

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_victory-spill2_5374

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_victory-spill3_5375

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_victory-spill4_5377

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_victory-spill5_5378

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-gundeck_5381

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-pumps_5388

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-gundeck_5382

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-messager1

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-messager2

Tout est en train de devenir un peu de l´archéologie experimentelle :-)
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Mer 20 Jan 2021 - 13:12

Peu après j´ai décidé de faire aussi les planches des ponts.

Après le premier essaie avec un bois marron on m´a dit que c´est pas juste comme couler. Mais on voit les bouts des planches déjà dans la façon correcte. On haut la dunette de Heller.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck2

Aprés j´ai pris ma petite scie circulaire et j´ai tranché une vielle étagère en bouleau de Ikea ;-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck3

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck5

Et des experiment avec le calfeutrage

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck6

Et les résultats.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck7

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck8

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck9

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory-deck10

Alors ça avance doucement ...
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Mer 20 Jan 2021 - 15:23

très chouette boulot  super111 super111
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par PELIKAN II Jeu 21 Jan 2021 - 12:51

:D
Tu as vraiment trouvé de quoi te "distraire",bravo cheers
bravo112

PELIKAN II
Chef d'équipe
Chef d'équipe

Masculin
Messages : 508
Date d'inscription : 15/09/2017
Age : 69
Localisation : Nord (dept 59).

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Jeu 21 Jan 2021 - 16:05

Merci :-)

à ce point là, j´ai commencé à travailler sur les canons pour me rendre conte ce que je voulais faire ...

Montage en cours avec tous les erreurs inclus ;-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_2817

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2822

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2824

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2825

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2829

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2845

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2835

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2844

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_25_2847

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-tompions_4865

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_shot_5330

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6509

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6544

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6545

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6564

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6578

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6589

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6592

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6593

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6594

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6612

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_6610

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_14_6635

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_14_6637

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_15_6638

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_15_6640

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_15_6656

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_15_6660

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_rammer_15_6672

dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Jeu 21 Jan 2021 - 19:46

superbe  tu cartonnes tu cartonnes
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par roger c Jeu 21 Jan 2021 - 19:58

Bravo, ton sujet est enrichissant. cela donne envie d'ouvrir la boite
roger c
roger c
Visiteur de l'usine
Visiteur de l'usine

Masculin
Messages : 8
Date d'inscription : 12/01/2018
Age : 71
Localisation : Le Conquet

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Jeu 21 Jan 2021 - 20:37

Allez-y Messieurs, allez-y :-)

Bon piège pour y tomber ;-)

Un peu plus de retrospective : Après 4 ans d´être dans le modèle, la première bitte d´ancre en balsa à été démolie et une seconde version de la batterie basse a éte commencé. En voilà les impressions.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_deckrape_3373

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_deckrape_3375

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_deckrape_3376

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_deckrape_3379

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_deckrape_3380

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_vitorybeams_0084

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_vitorybeams_0089

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_vitorybeams_0091

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_vitorybeams_0095

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-lowerdeck-0097

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-lowerdeck-0129

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-lowerdeck-0131

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-lowerdeck-0100

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-lowerdeck-0108
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Jeu 21 Jan 2021 - 20:53

Comme on a besoin des caillebotis pour le pont, il me fallait experimenter un peu avec mon Proxxon FET. En particulier comme je voulait les avoir en bois. La lame de scie de 0,5 mm et a coté rainure de guidage avec 0,5 mm de distance. Après chaque ligne on avance une rainure.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_22_0180

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0325

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0326

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0332

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0339

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_16_3383

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0341

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0343

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_24_0344

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_347

Comme toujours: Faites gaffe avec les scies circulaires ...

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-508%20

Alors j´ai bricolé une petite protection.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-507_0359%20
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Jeu 21 Jan 2021 - 21:05

Et voilà les résultats.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3401

Et on voit les refinements sur les pompes.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-22_0528

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-22_0551

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-22_0562

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-22_0565

Et les pièces du puzzle de la batterie basse préparé.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3386

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3387

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3395

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3394

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3393

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3397

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3388

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3389

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory_lowerdeck_3398

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_lowerdeck_3391

Les planches du pont la batterie basse sont préparé en dehors sur un carton comme l´accès était déjà trop difficile pour mes mais de forgeron.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-13_0484

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-15_0487

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0497

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0492

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0493

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0495

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0496

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0498

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0499

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-15_0485

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-15_0486

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-15_0488

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0502

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-22_0508

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-22_0515

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-22_0510

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-22_0514

Petite protections des parts delicates.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-30_0571

Et des premier impressions de l´interieur :-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0282

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0284

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-21_0285

ET OUI, c´est du Heller :-) :-) :-)
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par toubib Jeu 21 Jan 2021 - 21:33

très joli travail, bravo Dafi !!!
Jmichel :pirat: :pirat: :pirat:

_________________________________________________________
To HMS VICTORY and beyond ... Réf 80897 - Page 2 Cid_2510
toubib
toubib
Modérateur
Modérateur

Masculin
Messages : 11295
Date d'inscription : 06/09/2018
Age : 62
Localisation : F- TARN

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Jeu 21 Jan 2021 - 22:03

sublime boulot  tu cartonnes tu cartonnes tu cartonnes
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par PELIKAN II Ven 22 Jan 2021 - 13:29

J'avoue que j'ai bcp de mal à suivre ton montage mais l'important c'est que je puisse suivre ton avancée.
J'attend la suite avec curiosité et impatience :D

PELIKAN II
Chef d'équipe
Chef d'équipe

Masculin
Messages : 508
Date d'inscription : 15/09/2017
Age : 69
Localisation : Nord (dept 59).

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Ven 22 Jan 2021 - 13:36

Merci Messieurs,

il me faut avouer, que ce n´est qu´une retrospective et que je suis déjà beaucoup plus avancé :-)

Aussi je ne travaille pas dans l´ordre des instructions d´assemblage, mais je trouve toujours de nouveau coins pour m´amuser qui m´intéressent. Parfois difficile à suivre pour les spectateurs, mais comme ça le montage ne devient pas trop ennuyeux pour moi.

Si il y a des question spéciales, allez-y, posez des questions svp.

Et le pont avec les pièces :-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-606_0437

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-606_0433

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-606_0439

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-605_0438



XXXDAn
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par toubib Ven 22 Jan 2021 - 13:51

superbe !!
Jmichel :pirat: :pirat: :pirat:

_________________________________________________________
To HMS VICTORY and beyond ... Réf 80897 - Page 2 Cid_2510
toubib
toubib
Modérateur
Modérateur

Masculin
Messages : 11295
Date d'inscription : 06/09/2018
Age : 62
Localisation : F- TARN

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Ven 22 Jan 2021 - 14:57

Avant que je continue avec les ponts, en voilà quelque clichés de l´exterieur.

Pour commencer le plus important, les chaises d´aisance, devenu une passion de moi ;-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory_grating1

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory_grating2

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640_Victory_scheg

On peut voire aussi, que la structure du bois est enlevée et les pièces differentes de l´éperon sont gravées

La figure de proue, une veritable ménagerie ;-)

10 lions, un cheval, 2 petit clowns et un harpe qui joue de la musique ...

Pour commencer j´ai rallongé le haut de l´éperon et aussi j´ai resculpté les bras et jambes du Seraphim (rouge) et du Cherubim (bleu).

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640-victory-scheg

To HMS VICTORY and beyond ... Réf 80897 - Page 2 640-victory-putten

Voilà les lions ...

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_0326

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_0328

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_0330

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_0336

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_0348

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_victory-figurehead_0351

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_0771

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_0782

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_0784

Pour montrer que j´ai amélioré un peu mes mes habilités pendant le montage en cours, en voilà la figure en 2005 - faite par la boite - comparé avec celle de 2010 avec un peu plus de compétence :-)

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_2_0784


Dernière édition par dafi le Ven 22 Jan 2021 - 18:07, édité 2 fois
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Ven 22 Jan 2021 - 15:38

Et voilà le point de placer les lettres photodécoupées en laiton.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_1857

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_1866

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_1879

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_1872

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_1887

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_2187

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_2192

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory-figurehead_2203

:-)
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Ven 22 Jan 2021 - 15:46

tu cartonnes tu cartonnes tu cartonnes tu cartonnes
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dafi Ven 22 Jan 2021 - 18:05

Plus tard j´ai réalisé que les chaises d´aisance étaient trop petites.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads03_7696

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads05_7715

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads03_7716

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads05_7723

Construction des filets du garde fou.

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads04_7697

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads04_7698

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads05_7699

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads05_7704

To HMS VICTORY and beyond ... Réf 80897 - Page 2 800_Victory_heads05_7712

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-120106_7729

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-120106_7730

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-120106_7731

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Victory-120106_7736

Six chaises pour 800 hommes ...
dafi
dafi
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 92
Date d'inscription : 13/12/2020
Age : 58
Localisation : Allemagne

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par dakota59 Ven 22 Jan 2021 - 19:47

tu cartonnes tu cartonnes tu cartonnes
dakota59
dakota59
Expert
Expert

Masculin
Messages : 3076
Date d'inscription : 24/10/2016
Age : 60
Localisation : F-halluin 59250

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par toubib Ven 22 Jan 2021 - 20:22

superbe montage , bravo !!
Jmichel :pirat: :pirat: :pirat:

_________________________________________________________
To HMS VICTORY and beyond ... Réf 80897 - Page 2 Cid_2510
toubib
toubib
Modérateur
Modérateur

Masculin
Messages : 11295
Date d'inscription : 06/09/2018
Age : 62
Localisation : F- TARN

dafi aime ce message

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par Classic747 Ven 22 Jan 2021 - 23:06

Titanesque un vrai chantier naval, beaucoup de détails le niveau est très élevé déjà à ce stade la maquette na plus rien n'avoir avec le kit de départ génial,

J'aime beaucoup l'idée d'ajouter du scratch fais maison un vrai plus qui va apporter du réalisme à ton modèle au final beaucoup de travail de transformations,

Je vais suivre avec attention l’avancement de ton chantier que je trouve superbe :affraid:


Bonne continuation Dafi
Classic747
Classic747
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 156
Date d'inscription : 21/01/2021
Age : 47
Localisation : LFPG

Revenir en haut Aller en bas

To HMS VICTORY and beyond ... Réf 80897 - Page 2 Empty Re: To HMS VICTORY and beyond ... Réf 80897

Message par boks01 Sam 23 Jan 2021 - 9:00

Superbe montage et bien détaillé, je vais suivre cette construction avec intérêt, j'ai également HMS Victory en construction mais version bois.

Christian, (boks01)
boks01
boks01
Employé Qualifié de l'usine
Employé Qualifié de l'usine

Masculin
Messages : 180
Date d'inscription : 01/05/2017
Age : 74
Localisation : 01200 Lancrans

http://www.maquettes-avions-bateaux-hobbies.fr

Revenir en haut Aller en bas

Page 2 sur 6 Précédent  1, 2, 3, 4, 5, 6  Suivant

Revenir en haut

- Sujets similaires


Permission de ce forum:
Vous ne pouvez pas répondre aux sujets dans ce forum
